Details

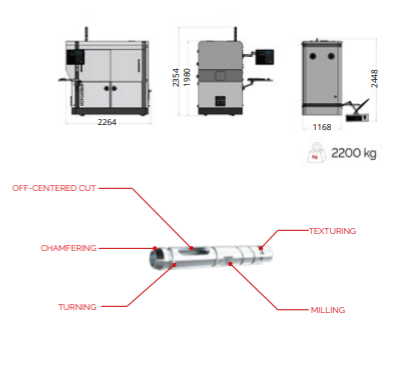

SPECIFICATIONS
Standard equipment:
- Femtosecond laser source (20W, 40W, 80W) with max. 200µJ pulse energy, bi-burst and nanoswitch modes
- Precise cutting head with 50 mm or 80 mm focal length and coaxial camera
- Water-cooled, high-accuracy galvo scanner from ScanLab (excelliscan14) with 70 mm f-theta lens
- Up to 4 axes including dynamic rotary stage + ACS drives for motion control:
- X = 300 mm
- Y = 250 mm (tool change axis)
- Z = 100 mm
- Ergonomic 27" touchscreen with optional keyboard
- Safe and stable enclosure with protected beam path
- Dust extraction system with fire protection
- Integrated job editor adapted to CAGILA
- US-based support team in San Diego area
- Dual laser setup with 150W QCW fiber laser
- Additional off-axis camera with motorized zoom for advanced positioning
- Wet-cutting option
- Bar feeder
View more about Hypostent - Laser Micromachining on main site
